Touch All In One Machine No Fan Wall Mounted Industrial Touch Screen Industrial Control Tablet Computer
Fully enclosed fan less industrial all-in-one machine, industrial dustproof, shockproof, pressure proof, radiation proof, durable, supporting 7 * 24h operation, high and low temperature resistance, built-in wireless network card, power on, no fan cooling, anti magnetic interference, precise touch, anti shock and anti vibration, and support customization.
1. Front frame pure plane IP65 and protection, fan free grid heat dissipation, fully enclosed aluminum alloy shell, supporting 7 * 24h operation
2. It is widely used in workshop production, automatic production, self-service refueling, video monitoring, medical consultation, shopping order, self-service sales, CNC field, etc.
3. Easy to operate, easy to operate and operate
4. Strong compatibility, support Windows operating system
5. Easy installation. Easy maintenance and easy replacement
6. Metal switch, high temperature resistance, wear resistance
7. Industrial solution, import all solid state capacitor motherboard
8. Fast, sensitive and touch sensitive
9. Energy saving, low power saving and power saving
10. Support equipment external connection, rich and complete interface, support customization.
| Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD |
| Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce | Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz |

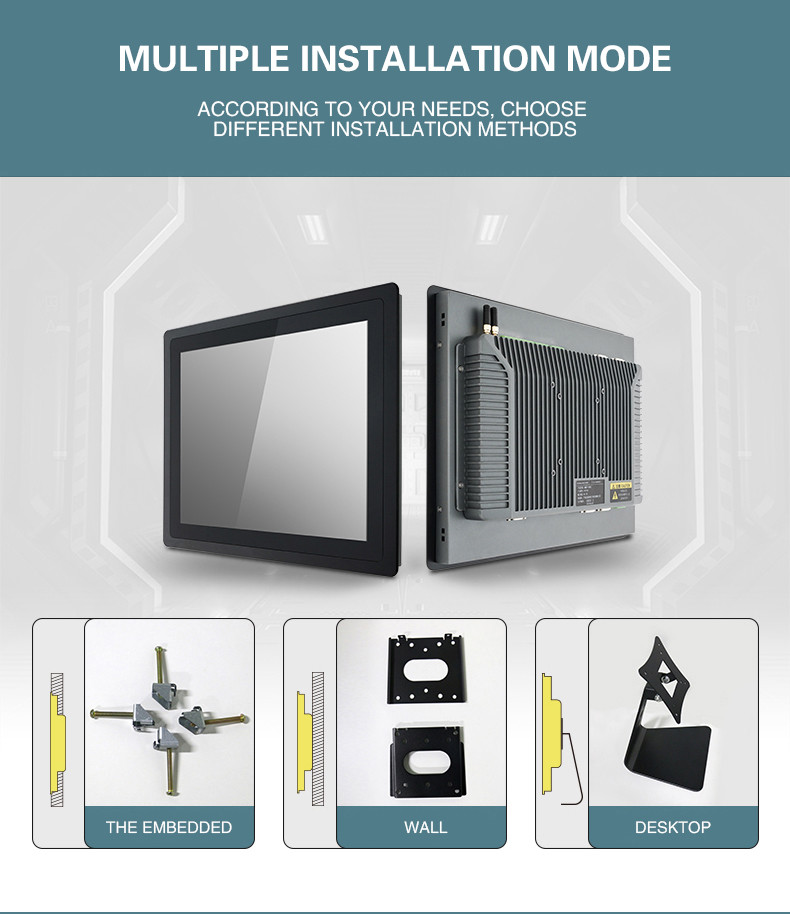

| Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G, Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm | Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
| Capacitor size Shell width(mm) Shell heigh(mm) Thickness(mm) Screen width(mm) Screen heigh(mm) Screen Resolution (mm) Wall hole position (mm) Screen width:height | 8.4inches 236 190 51.5 170.4 127.8 800*600 100*100 4:3 | 10.4 inches 283 225.2 56.2 213.1 160.3 1024*768 100*100 4:3 | 12.1 inches 317 258 56.2 246 184.5 1024*768 100*100 4:3 | 15 inches 378 297 56.2 304 228 1024*768 100*100 4:3 | 17 inches 413 342 56.2 338.92 271.34 1280*1024 100*100 4:3 | 19 inches 454 375.5 62.7 377.3 302.1 1280*1024 100*100 4:3 | 22 inches 559 349.3 65.5 477.6 261.1 1920*1080 100*100 16:9 |
